DC01 steel sheets for deep drawing are cold-rolled steels manufactured in accordance with EN 10130. They are designed for applications requiring excellent formability, high surface quality and precise dimensional tolerances. Thanks to the cold rolling process, these steels provide consistent mechanical properties and outstanding performance during bending, stamping and light deep drawing operations. They are widely used wherever reliable forming performance and an excellent surface finish are essential.
Sidastico supplies cut-to-size DC01 steel sheets for deep drawing in a wide range of thicknesses and dimensions. Precision cutting guarantees excellent dimensional accuracy, minimizes material waste and improves manufacturing efficiency. Every order is supplied with an EN 10204 3.1 certificate, ensuring full material traceability and compliance with European quality standards.
This cold-rolled steel combines excellent formability with very good machinability. It is suitable for laser cutting, punching, bending, roll forming and conventional sheet metal fabrication. Furthermore, its smooth and uniform surface provides an ideal base for painting, powder coating, galvanizing and other finishing processes. These characteristics help manufacturers achieve consistent production quality while reducing processing time and material waste.

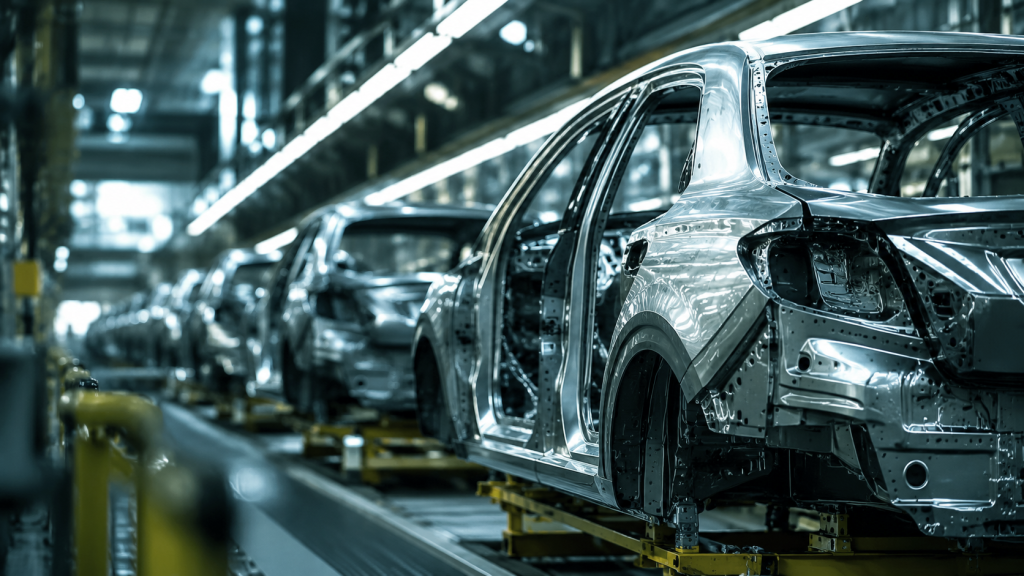

Typical applications include automotive components, electrical cabinets, household appliances, metal furniture, industrial enclosures, shelving systems, ventilation equipment, control panels and precision stamped parts. The material is also widely selected for components that require accurate dimensions, clean edges and a high-quality surface before coating or assembly. Its reliable forming performance makes it suitable for both serial production and custom manufacturing.
With extensive stock availability and advanced processing capabilities, Sidastico supplies cut-to-size cold-rolled steel sheets with fast delivery times, consistent quality and reliable technical support for demanding industrial applications.
Standard
EN 10130
Identification Number
10330
Classification
Unalloyed Steel
Type
Cold forming
Rolling State
–
Brief Description
Steels for cold forming
Applications
Automotive, household appliances, industry and light carpentry
Standard Coil Stock Range
| DC01 | 1000 | 1250 | 1500 | 2000 |
|---|---|---|---|---|
| 0,8 | ● | ● | ||
| 1 | ● | ● | ● | |
| 1,2 | ● | ● | ● | |
| 1,5 | ● | ● | ● | |
| 2 | ● | ● | ● | ● |
| 2,5 | ● | ● | ● | |
| 3 | ● | ● |
Chemical Composition
Regulatory standard
| Elemento | Valore |
| C (%) | ≤ 0,120 |
| Si (%) | ≤ 0,045 |
| Mn (%) | ≤ 0,60 |
| P (%) | ≤ 0,045 |
| S (%) | ≤ 0,045 |
| AI (%) | |
| Nb (%) | |
| Ti (%) | |
| V (%) | |
| Mo (%) | |
| Cu (%) |
| Elemento | Valore |
| Cr (%) | |
| Ni (%) | |
| N (%) | |
| B (%) | |
| Nb+Ti+V (%) | |
| Cr+Mo+Ni (%) | |
| Ni+Cr+Cu+Mo (%) | |
| C.E.V. (%) |
C.E.V. (%) = C+(Mn/6)+[(Cr+Mo+V)/5]+[(Ni+Cu)/15]
Mechanical Properties
| Mechanical characteristics | Direction | Thicknesses | Values |
| Re (MPa) | T | ≥ 0,30 – 3,00 ≤ | 270 – 410 |
| ≥ 0,30 – 0,50 ≤ | 24 ≥ | ||
| Rm(MPa) | T | ≥ 0,30 – 0,50 ≤ | 140 – 320 |
| ≥ 0,50 – 0,70 ≤ | 140 – 300 | ||
| ≥ 0,70 – 3,00 ≤ | 140 – 280 | ||
| A80 (%) | T | ≥ 0,50 – 0,70 ≤ | 26 ≥ |
| ≥ 0,70 – 3,00 ≤ | 28 ≥ | ||
| r90 | T | ≥ 0,45 – 0,50 ≤ | – |
| ≥ 0,50 – 0,70 ≤ | – | ||
| ≥ 0,70 – 6,00 ≤ | – | ||
| n90 | T | ≥ 0,45 – 0,50 ≤ | – |
| ≥ 0,50 – 0,70 ≤ | – | ||
| ≥ 0,70 – 6,00 ≤ | – |
T = Thickness in mm of the test piece for the bend test
Tolerances
Thickness tolerance UNI EN 10130
Width tolerance UNI EN 10131
Certifications
EN 10204-3.1 CE / Declaration of Performance
