Magnelis S350GD+ZM310 steel sheets are structural steels manufactured in accordance with EN 10346 and protected by an advanced zinc-aluminium-magnesium coating. Thanks to a minimum yield strength of 350 MPa, they provide excellent mechanical performance together with outstanding corrosion resistance. In addition, the ZM310 coating, with a nominal coating mass of 310 g/m² on both sides, offers long-lasting protection and improved cut-edge durability, making the material suitable for demanding industrial and outdoor applications.
Sidastico supplies Magnelis S350GD+ZM310 steel sheets with cut-to-size services in a wide range of thicknesses and dimensions. Precision cutting ensures excellent dimensional accuracy, reduces material waste and improves production efficiency. Furthermore, every order is supplied with an EN 10204 3.1 certificate, ensuring full material traceability and compliance with European quality standards.
The material is suitable for laser cutting, punching, bending, roll forming and conventional sheet metal fabrication. Moreover, the zinc-aluminium-magnesium coating provides reliable protection in industrial, agricultural, humid and marine environments. As a result, maintenance requirements are reduced while the service life of fabricated components is significantly extended.
Typical applications include photovoltaic mounting systems, industrial buildings, agricultural facilities, infrastructure projects, cable management systems, support structures and fabricated steel components. Finally, Sidastico supplies Magnelis S350GD+ZM310 steel sheets with fast delivery, consistent quality and expert technical support for industrial and construction projects.
Standard
EN 10346
Identification Number
1.0529
Classification
Structural steel with Magnelis® metallic coating (Zn-Al-Mg)
Type
High-strength low-alloy steel with ZM310 coating
Rolling State
Cold rolled and continuously hot-dip coated
Brief Description
S350GD structural steel according to EN 10346 with Magnelis® ZM310 zinc-aluminium-magnesium coating, providing high corrosion resistance and suitable for structural applications in aggressive environments.
Applications

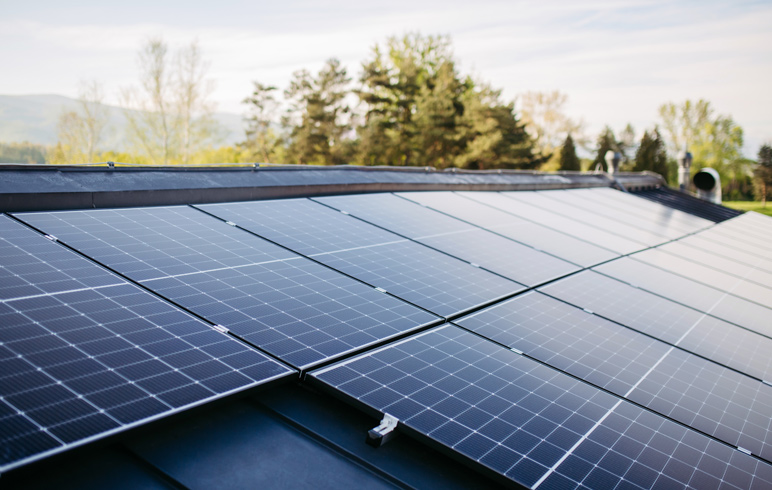

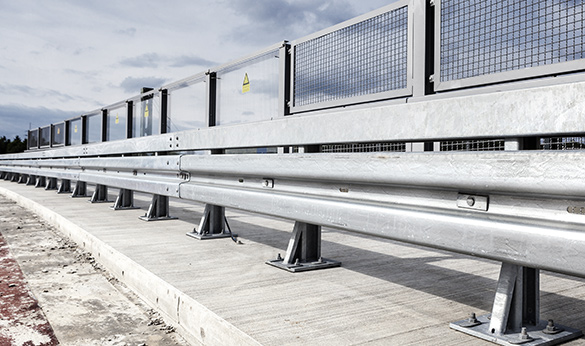

From civil to industrial construction – From agriculture to zootechnics – Construction of support structures for solar panels – Lightweight structures made of structural steel – Road infrastructure
Standard Coil Stock Range
| S350GD + ZM310 | 1000 | 1250 | 1500 |
|---|---|---|---|
| 0,6 | |||
| 0,8 | ● | ||
| 1 | |||
| 1,2 | ● | ||
| 1,5 | ● | ||
| 2 | ● | ||
| 3 | ● | ||
| 4 | ● |
| Rivestimento standard | Sagomario |
|---|---|
| ZM120 | |
| ZM175 | |
| ZM200 | |
| ZM250 | |
| ZM310 | ● |
| ZM430 |
Chemical Composition
Standard da norma
| Elemento | Valore |
| C (%) | ≤ 0,20 |
| Si (%) | ≤ 0,60 |
| Mn (%) | ≤ 1,70 |
| P (%) | ≤ 0,100 |
| S (%) | ≤ 0,045 |
| AI (%) | |
| Nb (%) | |
| Ti (%) | |
| V (%) | |
| Mo (%) | |
| Cu (%) |
| Elemento | Valore |
| Cr (%) | |
| Ni (%) | |
| N (%) | |
| B (%) | |
| Nb+Ti+V (%) | |
| Cr+Mo+Ni (%) | |
| Ni+Cr+Cu+Mo (%) | |
| C.E.V. (%) |
C.E.V. (%) = C+(Mn/6)+[(Cr+Mo+V)/5]+[(Ni+Cu)/15]
Mechanical Properties
| Caratteristiche Meccaniche | Direzione | Spessori | Valori |
| Rm (MPa) | L | ≥ 0,45 – 0,50 ≤ | ≥420 |
| ≥ 0,50 – 0,70 ≤ | |||
| ≥ 0,70 – 6,00 ≤ | |||
| Re (MPa) | L | ≥ 0,45 – 0,50 ≤ | ≥350 |
| ≥ 0,50 – 0,70 ≤ | |||
| ≥ 0,70 – 6,00 ≤ | |||
| A80 (%) | L | ≥ 0,45 – 0,50 ≤ | ≥ 12 |
| ≥ 0,50 – 0,70 ≤ | ≥ 14 | ||
| ≥ 0,70 – 6,00 ≤ | ≥ 16 | ||
| r90 | L | ≥ 0,45 – 0,50 ≤ | – |
| ≥ 0,50 – 0,70 ≤ | |||
| ≥ 0,70 – 6,00 ≤ | |||
| n90 | L | ≥ 0,45 – 0,50 ≤ | – |
| ≥ 0,50 – 0,70 ≤ | |||
| ≥ 0,70 – 6,00 ≤ |
L = Prove di trazione effettuate su provette longitudinali
T = Prove di piega effettuate su provette trasversali
| Rivestimento | Peso (g/m2) | Spessore (цm per lato)* |
|---|---|---|
| ZM120 | 120 | 10 |
| ZM175 | 175 | 14 |
| ZM200 | 200 | 16 |
| ZM250 | 250 | 20 |
| ZM310 | 310 | 25 |
| ZM430 | 430 | 35 |
*La densità del rivestimento Magnelis è 6,2 g/cm3
Tolerances
Tolerances on the dimensions and on the shape UNI EN 10143
Certifications
EN 10204-3.1
DISCLAIMER: SIDASTICO S.p.A. declines any and all liability for the accuracy and precision of the information herein and reserves the right to modify any part without advanced notice.
